Material Overview
Advanced structural porcelains, as a result of their unique crystal structure and chemical bond features, reveal performance benefits that metals and polymer products can not match in extreme environments. Alumina (Al ₂ O FOUR), zirconium oxide (ZrO TWO), silicon carbide (SiC) and silicon nitride (Si four N FOUR) are the 4 significant mainstream engineering porcelains, and there are essential distinctions in their microstructures: Al two O two belongs to the hexagonal crystal system and counts on strong ionic bonds; ZrO ₂ has 3 crystal types: monoclinic (m), tetragonal (t) and cubic (c), and obtains unique mechanical properties via stage adjustment strengthening device; SiC and Si ₃ N ₄ are non-oxide porcelains with covalent bonds as the major element, and have more powerful chemical stability. These architectural differences directly cause substantial distinctions in the prep work procedure, physical homes and design applications of the 4. This short article will methodically assess the preparation-structure-performance partnership of these four porcelains from the point of view of products scientific research, and discover their prospects for commercial application.
(Alumina Ceramic)
Prep work procedure and microstructure control
In terms of preparation procedure, the 4 porcelains reveal apparent distinctions in technical paths. Alumina ceramics make use of a fairly typical sintering process, normally utilizing α-Al ₂ O three powder with a pureness of more than 99.5%, and sintering at 1600-1800 ° C after dry pushing. The trick to its microstructure control is to hinder abnormal grain development, and 0.1-0.5 wt% MgO is normally added as a grain border diffusion inhibitor. Zirconia ceramics need to present stabilizers such as 3mol% Y TWO O six to keep the metastable tetragonal phase (t-ZrO two), and use low-temperature sintering at 1450-1550 ° C to avoid too much grain development. The core procedure obstacle lies in precisely regulating the t → m stage transition temperature home window (Ms factor). Considering that silicon carbide has a covalent bond ratio of approximately 88%, solid-state sintering requires a heat of greater than 2100 ° C and depends on sintering aids such as B-C-Al to create a liquid stage. The reaction sintering technique (RBSC) can attain densification at 1400 ° C by infiltrating Si+C preforms with silicon melt, but 5-15% cost-free Si will continue to be. The preparation of silicon nitride is one of the most intricate, normally making use of general practitioner (gas stress sintering) or HIP (warm isostatic pushing) processes, adding Y ₂ O FOUR-Al ₂ O five series sintering help to create an intercrystalline glass phase, and heat therapy after sintering to take shape the glass phase can substantially improve high-temperature efficiency.

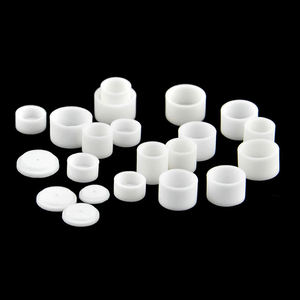

( Zirconia Ceramic)
Comparison of mechanical residential properties and strengthening system
Mechanical properties are the core analysis indicators of architectural porcelains. The 4 kinds of products reveal completely different fortifying systems:

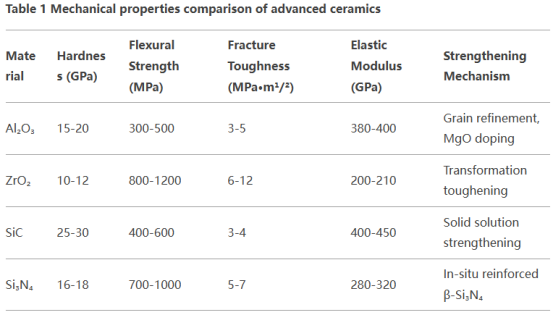

( Mechanical properties comparison of advanced ceramics)
Alumina primarily relies upon great grain strengthening. When the grain size is minimized from 10μm to 1μm, the strength can be raised by 2-3 times. The exceptional strength of zirconia comes from the stress-induced stage makeover mechanism. The stress field at the crack idea causes the t → m stage improvement accompanied by a 4% volume development, causing a compressive anxiety securing result. Silicon carbide can enhance the grain boundary bonding stamina via solid remedy of components such as Al-N-B, while the rod-shaped β-Si five N ₄ grains of silicon nitride can create a pull-out effect similar to fiber toughening. Fracture deflection and linking contribute to the enhancement of toughness. It deserves noting that by building multiphase ceramics such as ZrO ₂-Si Three N Four or SiC-Al Two O TWO, a variety of toughening devices can be worked with to make KIC exceed 15MPa · m ONE/ TWO.
Thermophysical homes and high-temperature behavior
High-temperature stability is the key benefit of structural porcelains that differentiates them from traditional materials:

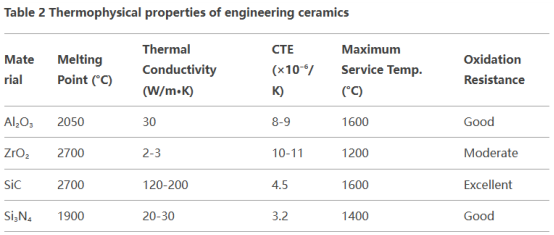

(Thermophysical properties of engineering ceramics)
Silicon carbide displays the very best thermal administration performance, with a thermal conductivity of approximately 170W/m · K(similar to light weight aluminum alloy), which is because of its simple Si-C tetrahedral structure and high phonon propagation rate. The reduced thermal development coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have excellent thermal shock resistance, and the essential ΔT value can get to 800 ° C, which is particularly ideal for duplicated thermal biking environments. Although zirconium oxide has the highest possible melting point, the conditioning of the grain limit glass stage at high temperature will certainly trigger a sharp decrease in strength. By adopting nano-composite modern technology, it can be boosted to 1500 ° C and still preserve 500MPa stamina. Alumina will experience grain boundary slip above 1000 ° C, and the addition of nano ZrO ₂ can develop a pinning effect to inhibit high-temperature creep.
Chemical stability and deterioration actions
In a corrosive environment, the four sorts of porcelains display significantly various failure systems. Alumina will certainly liquify externally in solid acid (pH <2) and strong alkali (pH > 12) options, and the rust price rises significantly with increasing temperature, getting to 1mm/year in boiling concentrated hydrochloric acid. Zirconia has great resistance to not natural acids, yet will undergo low temperature level deterioration (LTD) in water vapor settings over 300 ° C, and the t → m stage transition will certainly result in the formation of a microscopic split network. The SiO ₂ safety layer formed on the surface of silicon carbide gives it outstanding oxidation resistance listed below 1200 ° C, yet soluble silicates will be generated in liquified alkali metal atmospheres. The deterioration behavior of silicon nitride is anisotropic, and the deterioration price along the c-axis is 3-5 times that of the a-axis. NH Four and Si(OH)₄ will certainly be produced in high-temperature and high-pressure water vapor, causing material cleavage. By maximizing the structure, such as preparing O’-SiAlON porcelains, the alkali deterioration resistance can be increased by greater than 10 times.

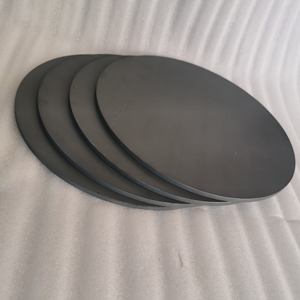

( Silicon Carbide Disc)
Regular Design Applications and Situation Studies
In the aerospace area, NASA utilizes reaction-sintered SiC for the leading edge components of the X-43A hypersonic airplane, which can endure 1700 ° C aerodynamic heating. GE Air travel makes use of HIP-Si five N ₄ to produce wind turbine rotor blades, which is 60% lighter than nickel-based alloys and allows higher operating temperatures. In the clinical area, the crack toughness of 3Y-TZP zirconia all-ceramic crowns has actually gotten to 1400MPa, and the service life can be reached more than 15 years with surface slope nano-processing. In the semiconductor market, high-purity Al two O five ceramics (99.99%) are made use of as dental caries products for wafer etching equipment, and the plasma rust rate is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.
Technical challenges and development trends
The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm components < 0.1 mm ), and high production expense of silicon nitride(aerospace-grade HIP-Si four N ₄ gets to $ 2000/kg). The frontier growth directions are concentrated on: ① Bionic structure design(such as covering split structure to enhance sturdiness by 5 times); ② Ultra-high temperature sintering technology( such as stimulate plasma sintering can attain densification within 10 minutes); ③ Intelligent self-healing porcelains (consisting of low-temperature eutectic stage can self-heal fractures at 800 ° C); ④ Additive manufacturing modern technology (photocuring 3D printing accuracy has actually reached ± 25μm).

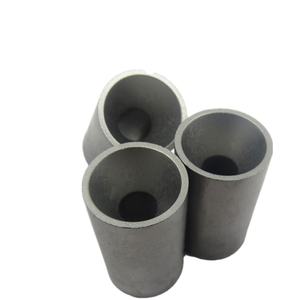

( Silicon Nitride Ceramics Tube)
Future advancement trends
In an extensive contrast, alumina will still dominate the conventional ceramic market with its expense benefit, zirconia is irreplaceable in the biomedical area, silicon carbide is the preferred product for extreme environments, and silicon nitride has great possible in the field of premium equipment. In the following 5-10 years, with the integration of multi-scale structural regulation and intelligent manufacturing innovation, the performance boundaries of design porcelains are anticipated to attain new advancements: for example, the layout of nano-layered SiC/C ceramics can achieve sturdiness of 15MPa · m ¹/ TWO, and the thermal conductivity of graphene-modified Al two O three can be enhanced to 65W/m · K. With the advancement of the “dual carbon” approach, the application range of these high-performance porcelains in new energy (gas cell diaphragms, hydrogen storage space materials), eco-friendly manufacturing (wear-resistant parts life boosted by 3-5 times) and other areas is expected to maintain an average yearly growth rate of greater than 12%.
